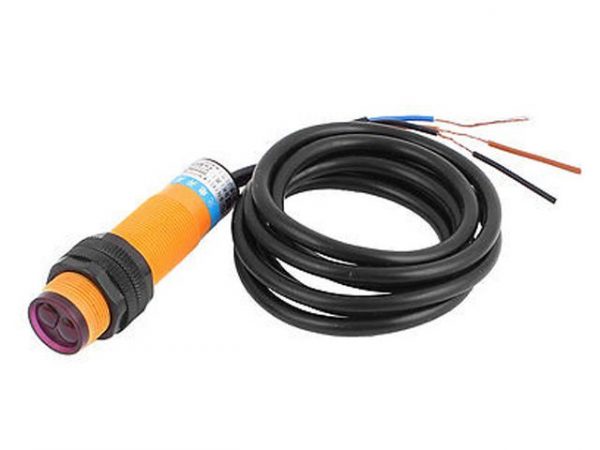

Infrared Proximity Photoelectric Switch 30 cm Detection Distance


EGP95.00

General purpose NPN output infrared sensor that offered up to 30cm sensing distance. It can be used at automation machine, mobile robot for obstacle detecting. it is a non contact detection.

The implementations of modulated IR signal immune the sensor to the interferences caused by the normal light of a light bulb or the sun light. The sensing distance can be adjusted manually.

Specification:

  • Diffuse reflective type
  • Light source: Infrared
  • Sensing range up to 30cm
  • Input voltage: 6-36VDC
  • NPN output
  • Dimension: 1.6cm (D) x 6.7cm (L)
  • Output Switch Type NPN-Normally Open (NPN-NO)

Note: The sensing distance is vary based on the Vcc you apply for it.

Wiring Connection:

  • Brown wire:  DC voltage supply (6 : 36 V)
  • Blue wire: Ground
  • Black wire: output signal
