LCD (2×16) Green


EGP45.00

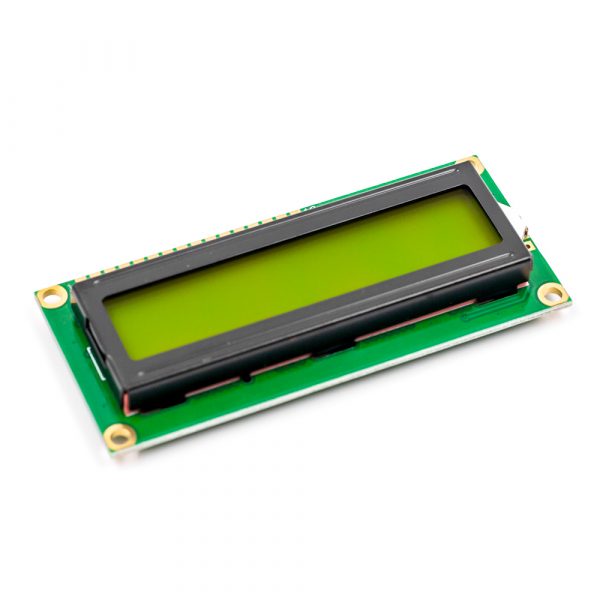

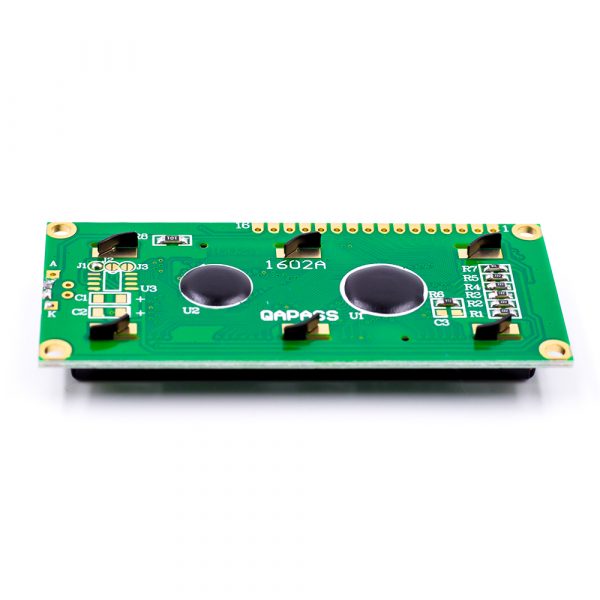

CD1602 LCD 1602 5V 16×2 Yellow and Green Screen with Backlight LCD Display Module Controller 1602A for Robot Smart Car DIY

Specification:
Product Name : LCD Display Module
Model : LCD1602
Working Voltage : DC 5V
Display Dot Matrix : 16×2
Screen Color : Yellow Green
Size(Approx) : 8 x 3.6 x 0.9cm/ 3.1inch x 1.4inch x 0.4inch(L*W*T)
Contrast Adjust : Potentiometer
Backlight Adjust : Jumper
Weight : 40g

Pinout:

1 GND
2 VDD
3 VOP
4 RS
5 RW
6 E
7 – 14 DATA
15 LED +
16 LED –
