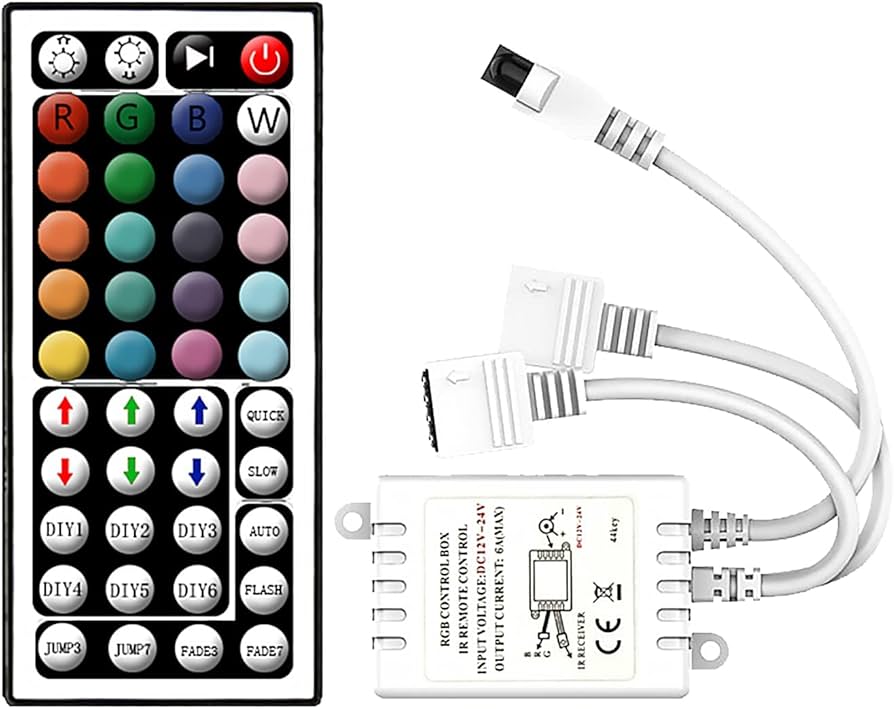

RGB LED Controller 12V with 44 Key IR Remote Controller V2

RGB LED Controller 12V with 44 Key IR Remote Controller

The RGB LED Controller 12V with 44 Key IR Remote Controller V2 is a versatile and user-friendly device designed to control 12V RGB LED strip lights. Equipped with an advanced micro-control unit and a 44-key infrared (IR) remote, this controller allows you to customize lighting with 20 static colors, 6 DIY color presets, and multiple dynamic modes like flash, strobe, fade, and smooth color transitions. Its compact design, easy 4-pin connection, and common anode configuration make it ideal for creating vibrant lighting effects in smart home setups, entertainment systems, and DIY electronics projects. The IR remote requires a direct line of sight for operation, ensuring precise control over brightness, speed, and color settings.

Features:

• 16 colors, 5 light patterns: Static/Flash/Strobe/Fade-change/RGB Smooth-change.
• 16-classes Static Mode Dim Control
• 16-Speeds Control in Flash / Strobe / Fade-change / RGB Smooth-change.
• Connecting mode: common anode
• Material: Plastic
• Output: Three CMOS Drain-open Output

Specifications:

• Input voltage: 12 VDC
• Output: 3 channels
• Connecting mode: Common Anode
• the maximum drive current of 2 A for each channel
• Operating temperature: -20 °C to 60 °C
• Dimensions of RGB Control Box: 50 x 35 x 22 mm
• Dimensions of Remote: 125mm x 55mm x 8 mm

Functions of remote control:

• ON / OFF – switching on and off
• PAUSE / PLAY – start and stop sequence
• SPEED – / SPEED + – speed management sequence
• 20 buttons with fixed colors:
  • Red
  • Green
  • Blue
  • White
  • + After the 4 shades of each of these colors
• Buttons to control the degree of illumination
• AUTO – display mode automatic change
• FLASH – strobe function for white color
• JUMP3 – activator RGB color
• JUMP7 – activator colors: white, blue, yellow, green, purple, blue, red
• FADE3 – activator of RGB colors with a smooth transition
• FLASH – strobe function for the following colors: white, red, green, yellow, blue, purple, turquoise
• FADE7 – launching crossfading the following colors: red, yellow, green, cyan, blue, purple, white
• 6 DIY buttons for defining custom colors and storing them in memory
• 6 buttons to change the intensity of RGB colors

Application:

• Smart Home Lighting.
• Entertainment Systems.
• Event Decor.

Package Includes:

• 1 x Remote controller
• 1 x Control box
• 1 x Instruction manual
