Description

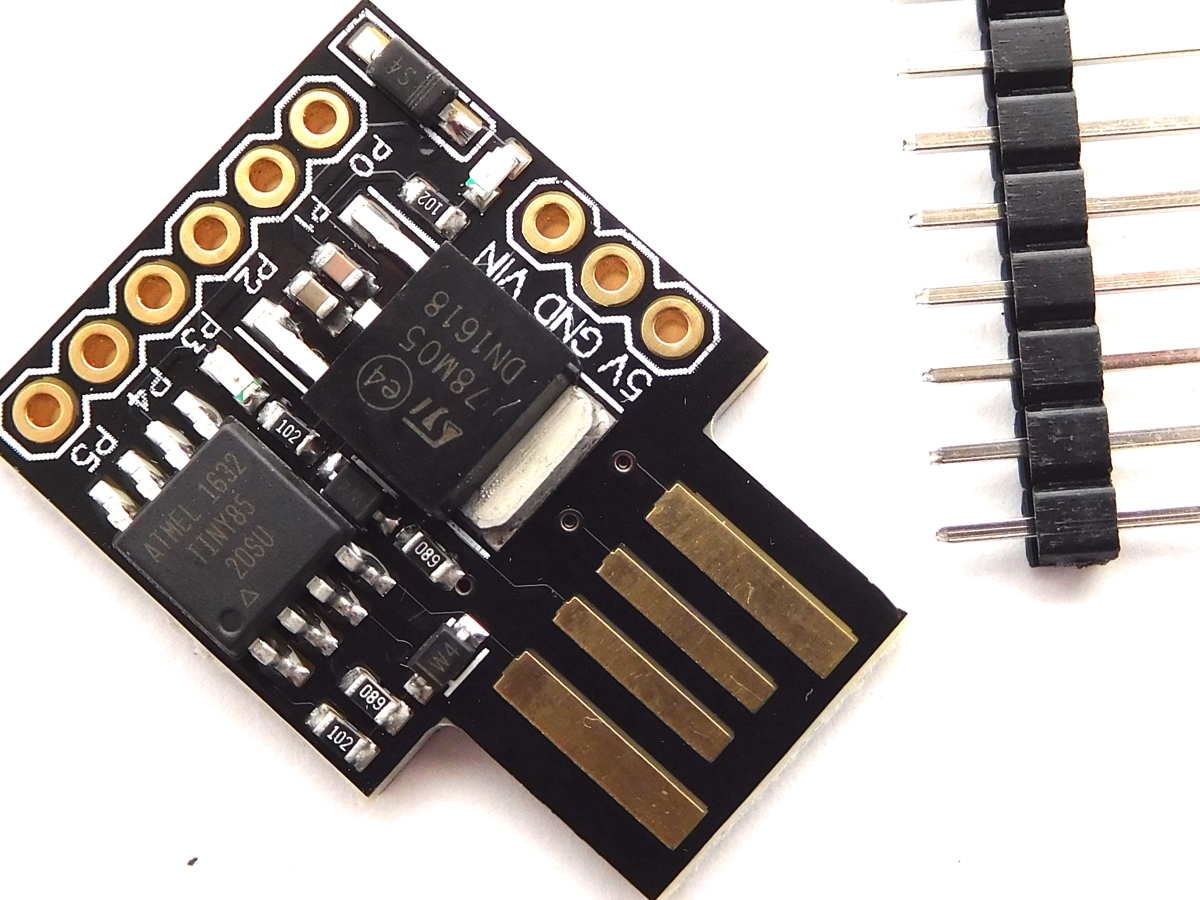

Although small in size, but great in capabilities. The ATtiny85 based mini development board is similar to the Arduino but cheaper and smaller (of course a bit less powerful). With a whole host of shields to extend its functionality and the ability to use the familiar Arduino IDE, this board is a great way to jump into microcontroller electronics.
ATTINY85 General Micro USB Development Board Features
- Support for the Arduino IDE 1.0+ (OSX/Win/Linux)
- Power via USB or External Source
- Onboard 5V Regulator
- Built-in USB
- 6 I/O Pins
- 8k Flash Memory (about 6k after bootloader)
- I2C and SPI (vis USI)
- PWM on 3 pins (more possible with Software PWM)
- ADC on 4 pins
- Power LED and Test/Status LED
