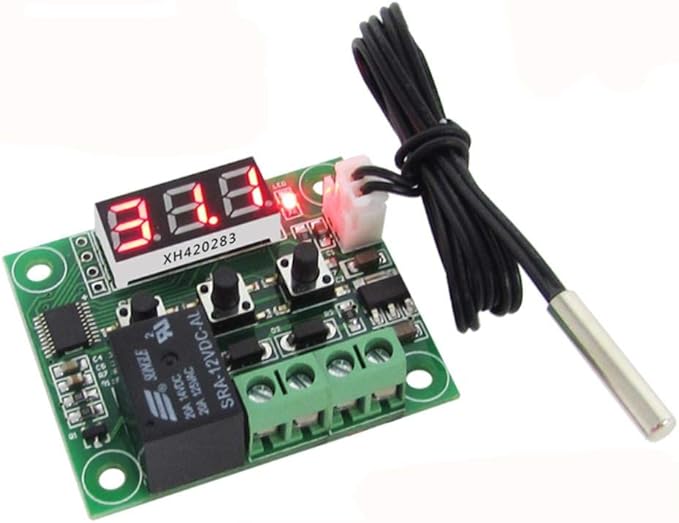

(W1209) Programmable Temperature Control Switch Relay


EGP145.00

Wholesale W1209 DC12V Digital Cool Heat temp Thermostat Thermometer Temperature Controller

Feature Details:

Model: W1209

Light Color: RED

Temperature control mode: ON / OFF

Temperature range :-50-110℃

Resolution When temperature is 0.1 the resolution is -9.9~99.9, other temperature segment is 1

Control accuracy: 0.1

Hysteresis accuracy: 0.1

Refresh rate: 0.5S

High temperature protection 0-110℃

Supply voltage: for DC 12V

Static current: ≤ 35MA, attract current ≤ 65MA

Output voltage: for DC 12V

Output power: 10A relay

Measurement input: NTC (10K 0.5%) Waterproof Sensor

Environmental requirements: -10 ~ 60℃ Humidity 20% -85%

Size: 48x40mm(LxW)
