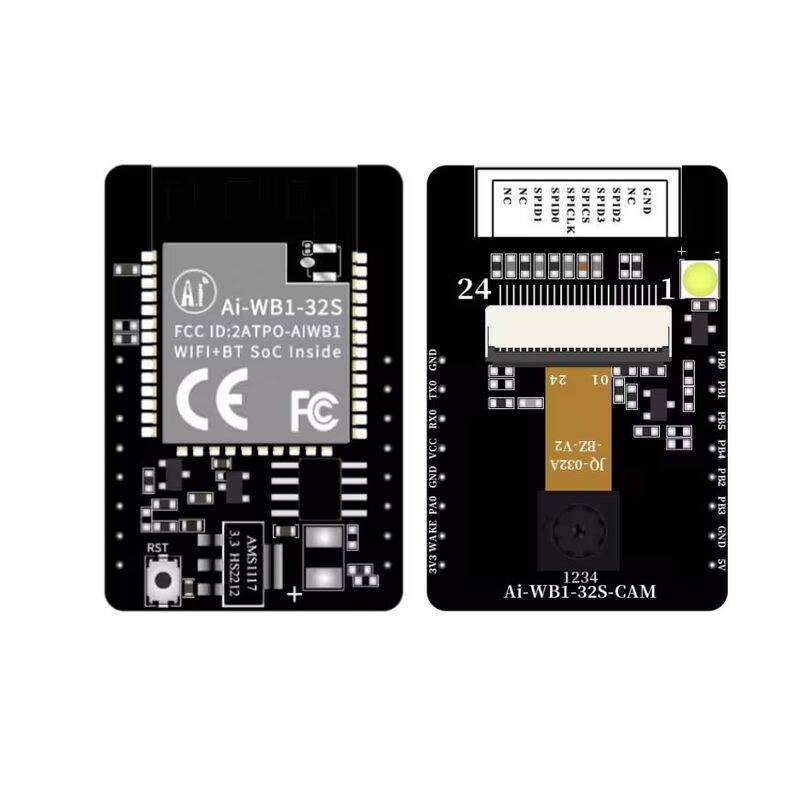

Ai Thinker Ai-WB1-32S-CAM ( Compatible with ESP32 CAM ) with GC032A Camera Module

The Ai-WB1-32S-CAM is a versatile camera development board designed for Internet of Things (IoT) applications. Developed by Ai-Thinker Technology Co., Ltd., this module combines the Ai-WB1-32S Wi-Fi and Bluetooth module with a GC032A camera, enabling seamless image capture and wireless transmission. Powered by the W800 chip, it features a 32-bit XT804 CPU running at 240MHz, 2MB Flash memory, and 288KB RAM. The board supports Wi-Fi 802.11b/g/n and BLE 4.2 protocols, making it ideal for a wide range of applications, including home automation, industrial control, and monitoring systems. Its compact size of 40.01 x 27.01 mm and low power consumption make it an excellent choice for efficient IoT solutions.

Features
  • Integrated Camera: GC032A camera with JPEG output up to 320×240 resolution.
  • Wi-Fi Connectivity: Supports IEEE 802.11 b/g/n protocols.
  • Bluetooth: BLE 4.2 for low-power wireless communication.
  • Security: Wi-Fi WMM/WMM-PS/WPA/WPA2/WPS, with hardware encryption (RC4256, AES128, DES/3DES, SHA1/MD5, CRC32, 2048RSA).
  • Bandwidth: Supports 20/40MHz bandwidth, up to 150 Mbps.
  • Operation Modes: Station, Station + SoftAP, SoftAP.
  • Processor: 32-bit XT804 CPU, 240MHz.
  • Memory: 2MB Flash, 288KB internal RAM + 8MB external RAM.
  • Interfaces: UART, PWM, I2C, GPIO for flexible connectivity.
  • Antenna: On-board antenna for simplified design.
  • Power Supply: 3.3V or 5V, requires >500mA current.
  • Low Power Consumption: Standby current as low as 2 μA.

Specifications
Parameter Details
Model Ai-WB1-32S-CAM
Package DIP-16
Size 40.01 x 27.01 mm
Antenna On-board
Operation Temperature -40°C to 85°C
Storage Environment -40°C to 125°C, <90% RH
Power Supply 3.3V or 5V, current >500mA
Interfaces UART, PWM, I2C, IO
Serial Port Rate 110 to 2,000,000 bps (default 115,200 bps)
Bluetooth BLE 4.2
Wi-Fi Security WMM/WMM-PS/WPA/WPA2/WPS
Flash 2MB
RAM 288KB internal + 8MB external
Image Output Format JPEG
Resolution Up to 320×240
Wi-Fi RF Performance Spectrum Range: 2400 ~ 2483.5MHz
Output Power: 11n HT20: 12 dBm, 11g: 13 dBm, 11b: 18 dBm
Receiving Sensitivity: 11b 1Mbps: -95 dBm, 11b 11Mbps: -85 dBm, 11g 6Mbps: -89 dBm, 11g 54Mbps: -72 dBm, 11n HT20 MCS7: -69 dBm
BLE RF Performance Spectrum Range: 2400 ~ 2483.5MHz
Output Power: 4 dBm (typical), 6 dBm (max)
Receiving Sensitivity: -92 dBm @1Mbps, 30.8% PER
Power Consumption Tx 802.11b, 11Mbps, POUT=+19dBm: 348 mA (average)
Tx 802.11g, 54Mbps, POUT=+15dBm: 190 mA (average)
Tx 802.11n, MCS7, POUT=+12dBm: 190 mA (average)
Rx 802.11b/g/n, 1024 bytes: 96 mA (average)
Standby: 2 μA (average)



Definition table of pin functions

Applications
  • Home Smart Devices: Enables image transmission for smart doorbells, cameras, and home automation systems.
  • Industrial Wireless Control: Supports wireless control in industrial automation and sensor networks.
  • Wireless Monitoring and Surveillance: Ideal for security cameras and remote monitoring systems.
  • IoT Applications: Suitable for projects requiring camera and wireless connectivity.
  • Smart Security Systems: Enhances security with wireless image capture and transmission.
  • Smart City Infrastructure: Supports applications in traffic monitoring and urban IoT networks.
