The MPU-9250 combines a 3-axis accelerometer, a 3-axis gyroscope and a 3-axis magnetometer with an on-board Digital Motion Processor (DMP) all packaged in a high performance small module.

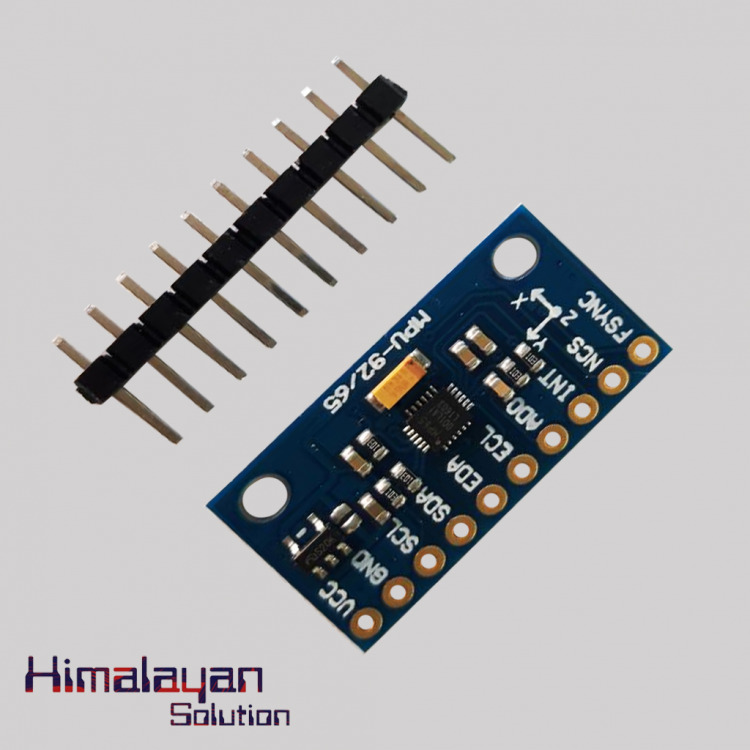

MPU-9250 3-Axis Accel, Gyro & Mag Sensor Module
10-pin male header
KEY FEATURES OF MPU-9205 3-AXIS ACCEL, GRYO & MAG SENSOR MODULE:
3-axis MEMS 16-bit accelerometer with programmable range
3-axis MEMS 16-bit gyroscope to detect rotation with programmable range
3-axis MEMS 16-bit magnetometer to detect magnetic compass direction
9-axis MotionFusion Digital Motion Processor (DMP)
Temperature sensor range of -40 to +85C
I2C and SPI Interface
5V power (built-in 3.3V regulator powers MPU-9250 device)
3.3V logic compatible
The MPU-9250 is a high performance accelerometer, gyroscope and magnetometer option for use in applications such as gesture recognition in gaming, self-balancing robots, toys, cell phones, vehicle navigation, fitness monitoring and similar applications where detection of movement direction and magnitude along with rotation is desired.
Both the accelerometer and gyroscope each makes use of three 16-bit ADCs with four programmable ranges for high sensitivity. The magnetometer makes use of three 14-bit ADCs. A built-in temperature sensor is also provided for measuring the chip die temperature and has a wide measurement range from -40C to +85C.
